ISO 2768
CNC Machining Tolerances and Standards
With a wide range of CNC machines, we are able to provide standard tolerance CNC machined parts with the most economical price and super precision machined parts for high-end products. When working with KIXENER, we guarantee all parts will be made according to your specification. If 2D drawings are not available, you can also indicate with ISO 2768.

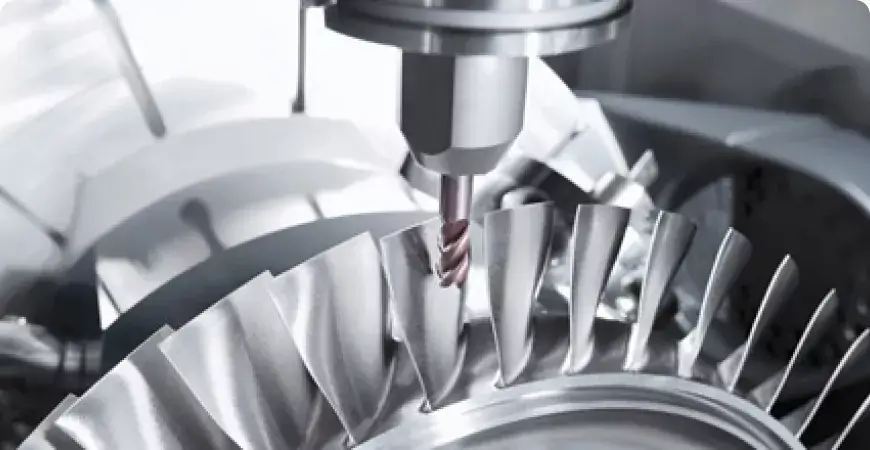

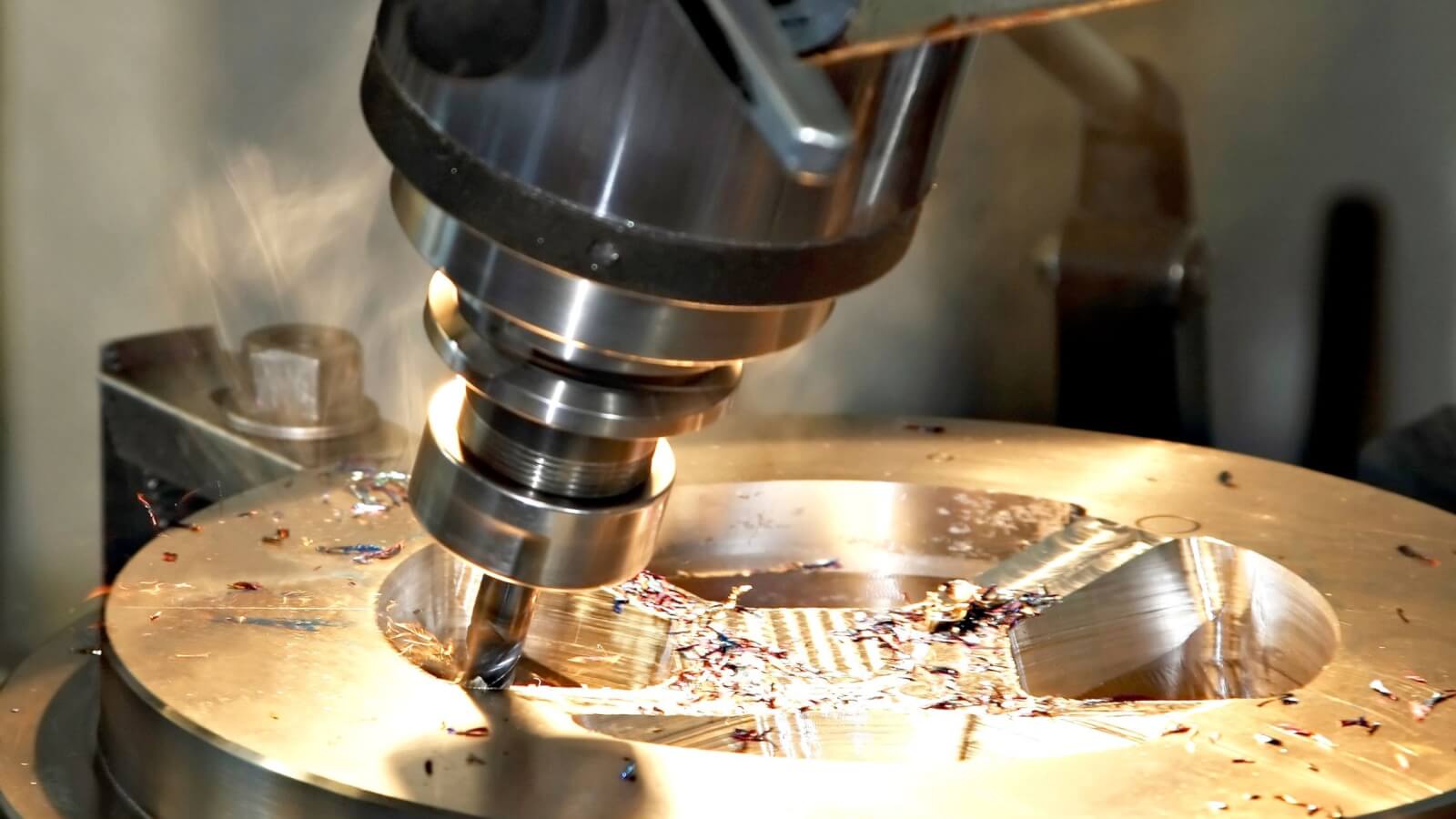

CNC Milling

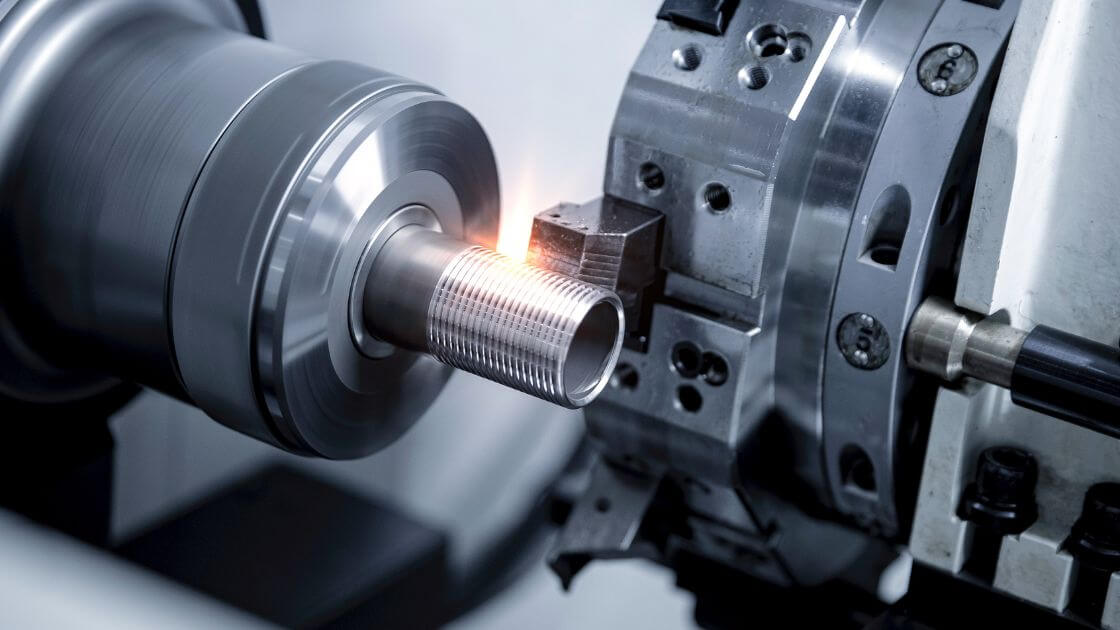

CNC TurningMaximum Part Size
4000×1500×600 mm157.5×59.1×23.6 in.
200×500 mm7.9×19.7 in.
Minimum Part Size
4×4 mm0.1×0.1 in.
2×2 mm0.079×0.079 in.
Minimum Feature Size
Φ 0.50 mmΦ 0.00197 in.
Φ 0.50 mmΦ 0.00197 in.
Standard Tolerances
Φ 0.50 mmΦ 0.00197 in.
Φ 0.50 mmΦ 0.00197 in.
Linear Dimension
+/- 0.025 mm+/- 0.001 in.
+/- 0.025 mm+/- 0.001 in.
Hole Diameters (Not Reamed)
+/- 0.025 mm+/- 0.001 in.
+/- 0.025 mm+/- 0.001 in.
Shaft Diameters
+/- 0.025 mm+/- 0.001 in.
+/- 0.025 mm+/- 0.001 in.
Edge Condition
*Sharp corner will be removed in the form of a chamfer or radius. The size of the chamfer, or resulting radii, must be indicated on the drawing.
Threads and Tapped Holes
Diameter: Φ 1.5-5 mm, depth: 3×diameterDiameter: Φ 5 mm or more, depth: 4-6×diameter
Diameter: Φ 1.5-5 mm, depth: 3×diameterDiameter: Φ 5 mm or more, depth: 4-6×diameter
*KIXENER can produce threads of any specification and size required by our customers.
Text
Minimum width of 0.5 mm, depth of 0.1 mmKIXENER can use CNC engraving or laser carving to create standard text based on customers’ requirements.
KIXENER can use laser marking to create standard text for CNC turned parts.
