Unlock complexity and precision for all your machining needs.
ISO9001:2015 Certified
60+CNC machines
100+Plastic & metal materials
10K+CNC parts made monthly
For complex and time-sensitive machined parts, 5-axis CNC machines offer unparalleled flexibility and speed. KIXENER’s experienced team can help bring your ideas to life, from rapid prototypes to end-use parts for safety-critical applications.
Our 4-axis and 5-axis milling capabilities enable us to provide precise parts with complex geometry in fewer setups—reducing lead time and improving accuracy.
Watch Our 5-Axis Machining Process ›With so many precision machining providers available, why partner with KIXENER? Here are four key reasons that make us stand out.

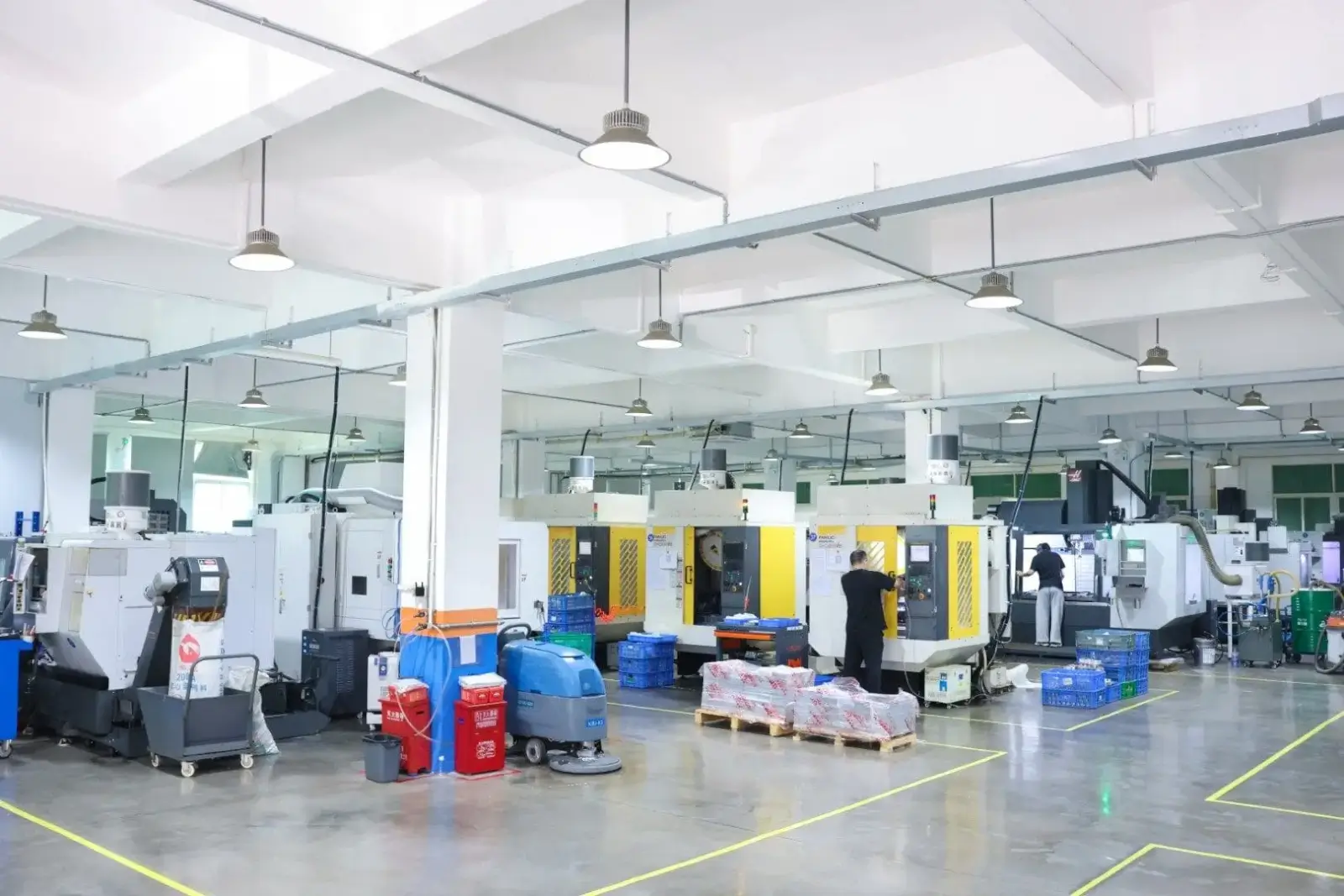

With over 10 advanced 5-axis CNC machines in-house, we deliver both prototypes and production parts quickly and reliably. Expedited options help you meet tight deadlines.
We operate top-tier HAAS and JingDiao 5-axis CNC machines, supported by on-site inspection to ensure ultra-tight tolerances and consistent quality.
Our engineers work closely with you to optimize designs for better performance, cost-efficiency, and manufacturability—not just machine your parts.
From aerospace to electronics, we provide precise, reliable 5-axis machining solutions for every application and development stage.
All information and uploads are secure and confidential.
Technically, adding two more axes to a traditional 3-axis setup results in a machine with five axes, but 3+2 is not truly equivalent to simultaneous 5-axis machining.

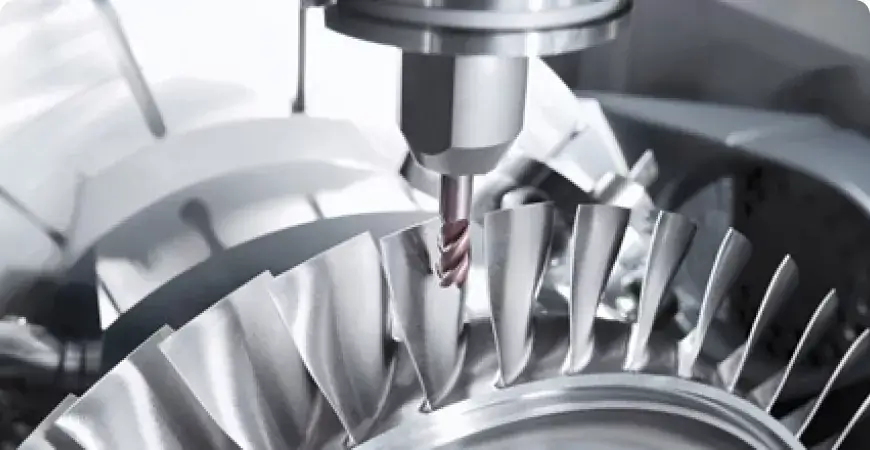

All five axes move simultaneously. Continuous 5-axis machining adjusts movement on all axes without pause—ideal for highly complex geometries and smoother finishes in fewer setups.

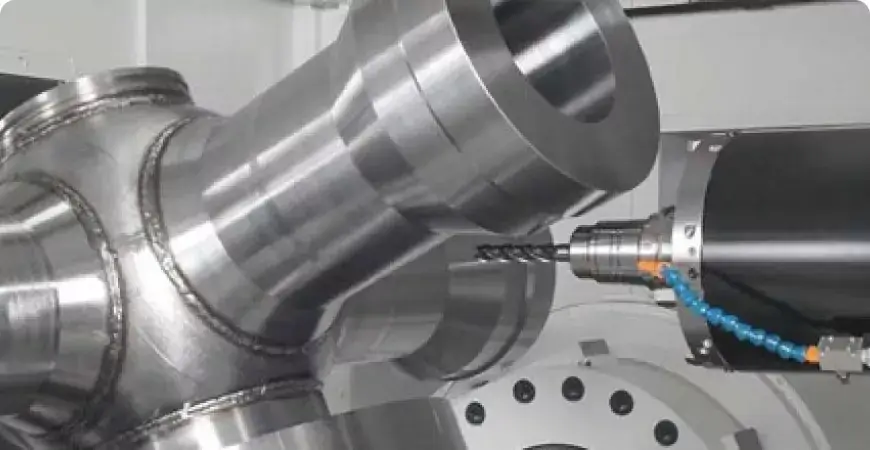

Three axes move while two are fixed at an angle. The rotary axes reposition the tool or part, then lock for 3-axis cutting—great for multi-angle features with rigid setups.
| Simultaneous 5-Axis | 3+2 Axis | |
|---|---|---|
| Movement | All five axes move simultaneously | Three axes move; two fixed at an angle |
| Complexity | Highly complex geometries in one setup | Parts requiring multi-angle positioning |
| Surface Quality | Smoother finishes with fewer tool marks | May need additional finishing |
| Efficiency | Faster production with fewer setups | Slower than full 5-axis; better than 3-axis |
| Best For | Aerospace, medical, intricate components | Large prismatic parts with angled features |
| Cost | Higher machine and programming costs | More cost-effective alternative |

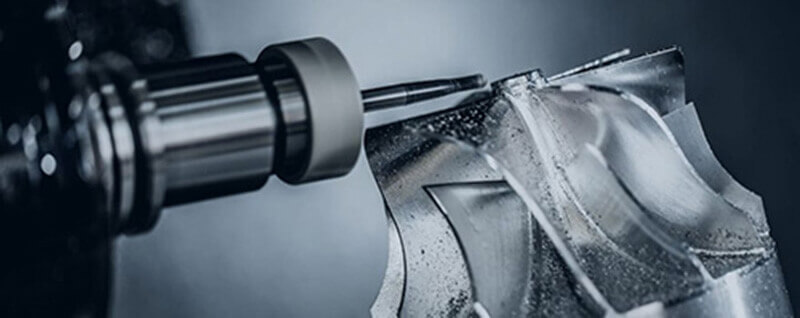

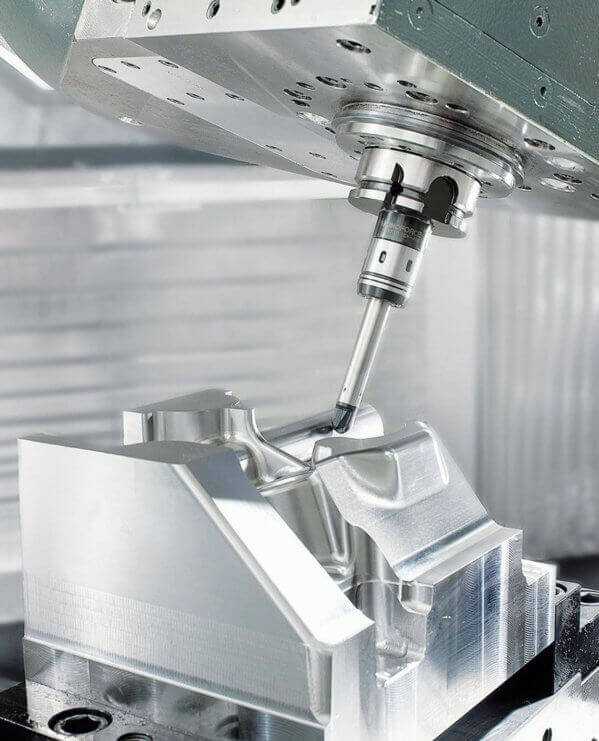

5-axis CNC machines share X, Y, and Z travel, but add the two rotary axes in different ways. The most common styles are trunnion and swivel-rotate.
From automotive prototypes to aerospace structures, 5-axis machining unlocks complex geometries across demanding industries.
5-axis machining is widely used for prototyping and production of car components with complex contours and multi-sided features.

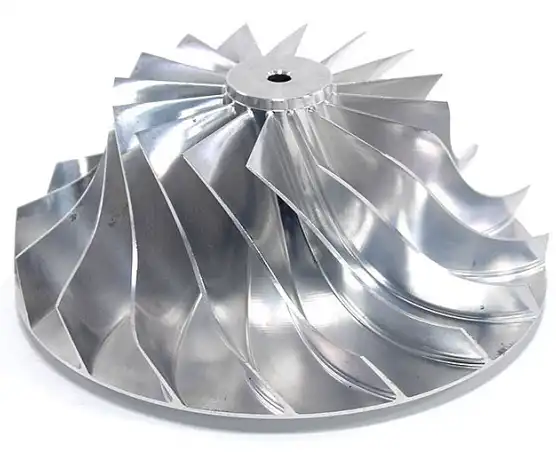

Aircraft components often have intricate geometries—curves and interior cuts—that would take far longer on a 3-axis setup.
Titanium and stainless steel surgical tools require high precision and repeatability—ideal for efficient 5-axis production.
5-axis CNC is suited to mission-critical parts that demand complex geometry, durable materials, and tight process control.

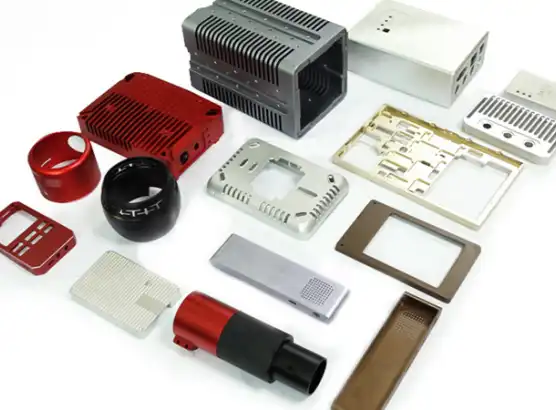

Casings, chassis, and heat sinks for cameras, laptops, and devices benefit from multi-axis access and fine feature control.

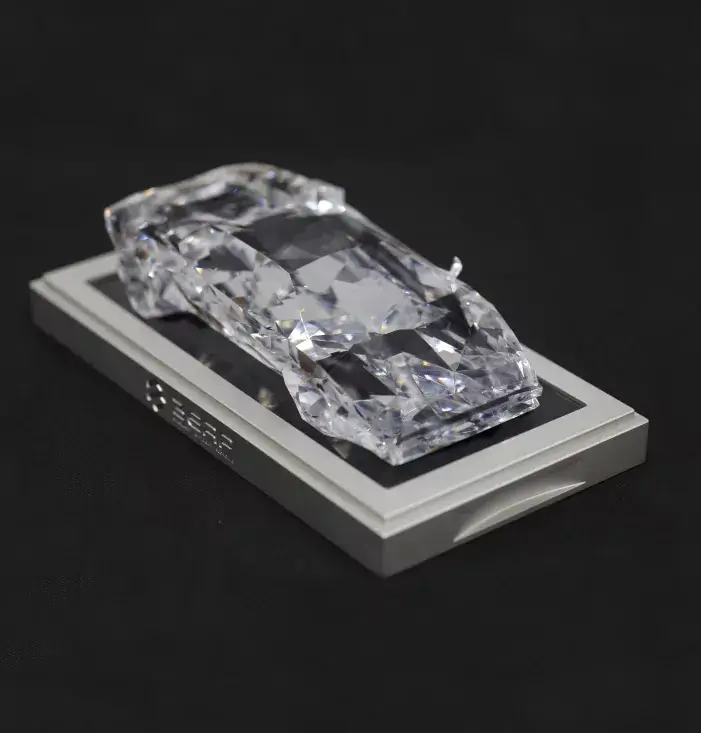

5-axis CNC cuts deep mold cavities with better tool access and shorter cutters—reducing chatter versus long-reach 3-axis or slow EDM.
Explore how our 5-axis CNC machining services bring high-precision parts with intricate shapes to life.
Challenge: Deep cavity tolerance ±0.02 mm with Ra0.1 roughness and multi-direction micro channels.
Solution: 5-axis milling to minimize setups, special drills for 0.5 mm holes, and reaming for a high-gloss inner surface.
Challenge: Complex geometry with near-flat joint lines; 3D printing did not meet expectations.
Solution: Precision 5-axis milling for a diamond-fine surface that reduced post-machining sanding and polishing.
Selecting the right material helps lower cost and improve performance. Contact us if you need guidance for your project.
Enhance appearance, roughness, hardness, and corrosion resistance while minimizing visible tool marks.
Cost-effective finish with visible tool marks from the CNC machine.
Removes tool marks for a refined gloss or satin surface.
Uniform matte texture that hides minor imperfections.
Protective and aesthetic coating in customizable colors.
Durable, wear-resistant finish cured under heat.
Enhances corrosion resistance and appearance for aluminum.
Uniform corrosion-resistant coating with excellent adhesion.
Directional satin texture for a clean, professional look.
5-axis CNC machining moves the cutting tool along five axes—X, Y, Z, A, and B—so complex parts can be fabricated precisely in a single setup. This reduces setup time, improves accuracy, and increases design flexibility.
Yes. Accessing five sides in one setup reduces repositioning error. Typical precision can reach as high as 0.005 mm, depending on geometry, material, and inspection requirements.
We machine aluminum, steel, stainless, titanium, copper alloys, engineering plastics (ABS, POM, PEEK, Nylon, and more), and other specialty materials for prototypes and production.
Choose 5-axis for complex shapes, multi-sided features, freeform surfaces, or when fewer setups and better surface access matter. 3-axis remains ideal for simpler geometries and the most cost-effective prismatic parts.
