KIXENER offers high-precision custom CNC turning services for OEM, rapid prototypes and production. Get tight-tolerance metal and plastic parts with quick delivery.
ISO 9001Certified Quality
FastTurnaround
CompetitivePrice
ExpertSupport

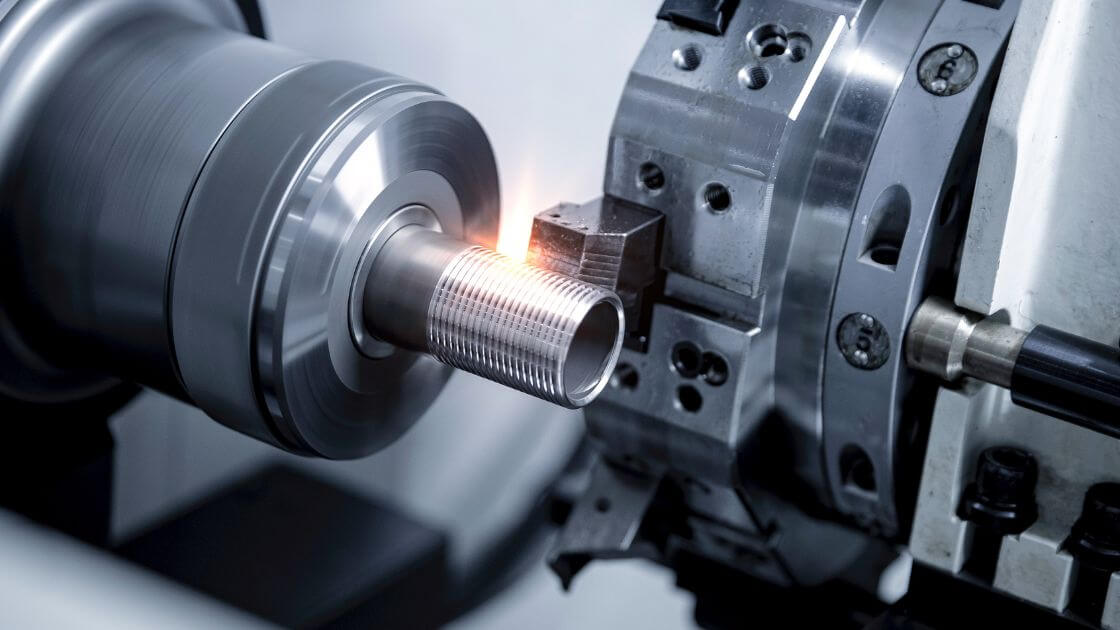

CNC turning is a subtractive process where a rotating workpiece is shaped by a stationary cutting tool. It is ideal for cylindrical parts such as shafts, bushings, pins, and threaded components.
With live tooling and multi-axis lathes, KIXENER can also machine flats, slots, holes, and complex features in a single setup—reducing lead time and improving concentricity.
Watch Our CNC Turning Process ›From one-off prototypes to scaled production, our CNC turning services adapt to your development timeline.

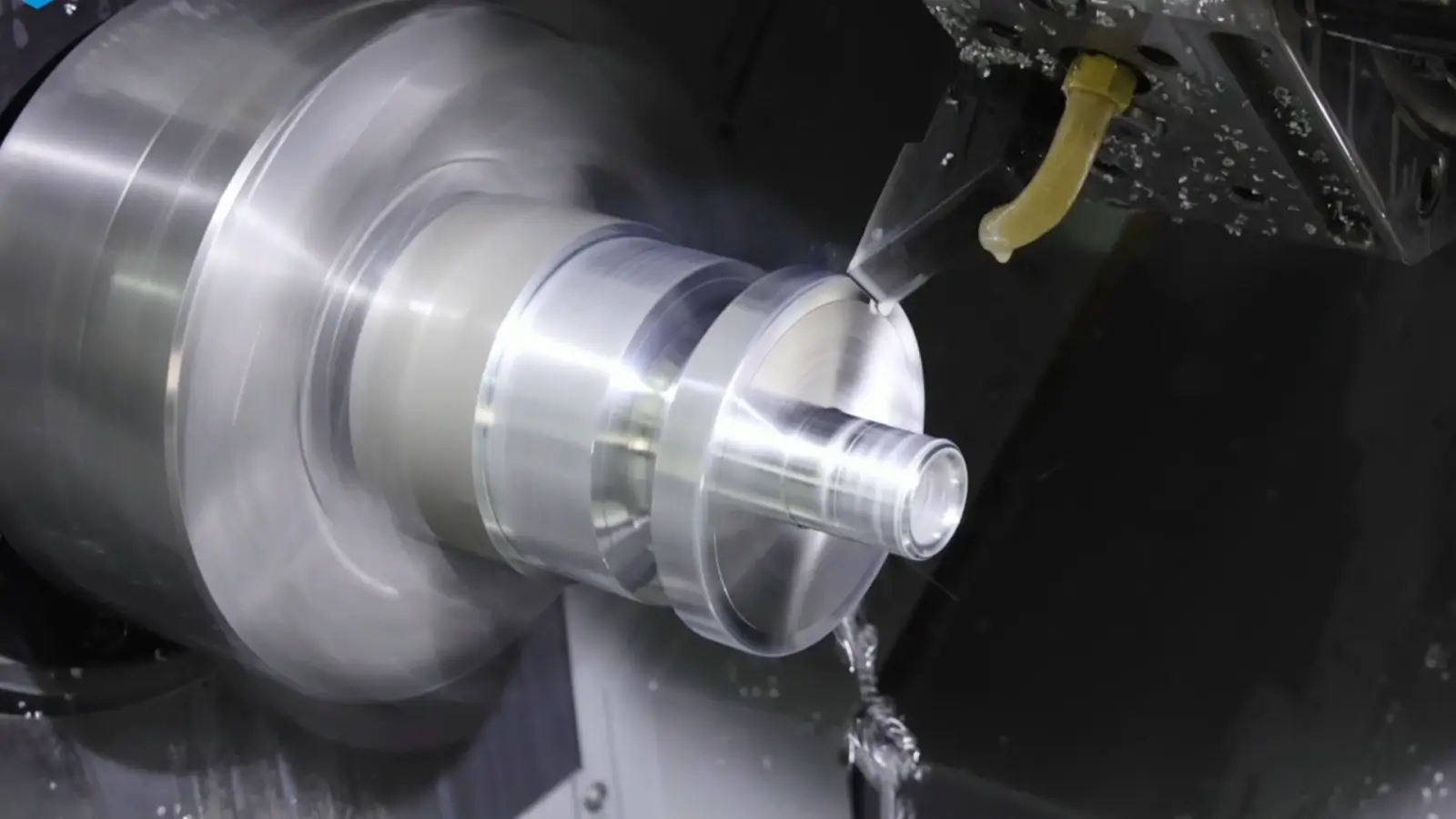

Validate fit, form, and function with precision turned prototypes before committing to full production.

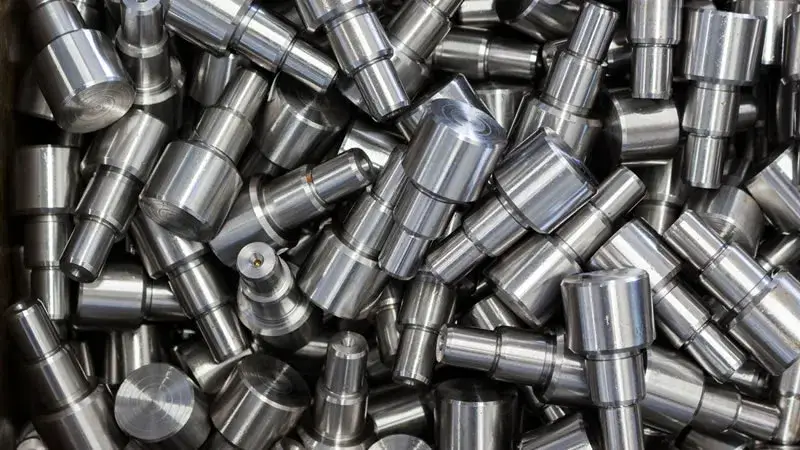

Consistent quality across batches with flexible quantities, competitive pricing, and reliable delivery.
We machine a wide range of metals and plastics selected for strength, durability, and cost.
| Material | Typical Grades | Notes | |
|---|---|---|---|

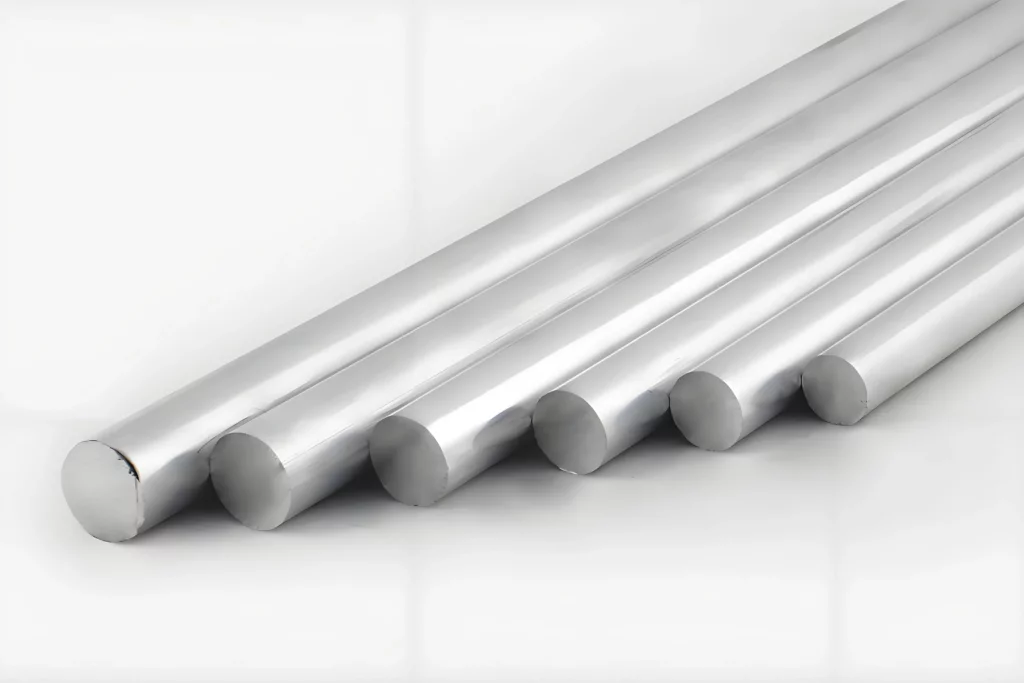

| Aluminum | 6061, 7075, 2024 | Lightweight, excellent machinability | Details › |
| Steel | 1018, 4140, A36 | High strength for structural parts | Details › |
| Stainless Steel | 304, 316, 17-4PH | Corrosion resistance | Details › |
| Brass / Copper | C360, C110 | Electrical & decorative uses | Details › |
| Titanium | Grade 2, Grade 5 | High strength-to-weight | Details › |
| Plastics | POM, Nylon, PEEK, PTFE | Wear resistance & insulation | Details › |
Improve appearance, corrosion resistance, and durability with secondary finishing options.
Cost-effective finish with visible tool marks from the lathe.
Removes tool marks for a refined gloss or satin surface.
Uniform matte texture that hides minor imperfections.
Protective and aesthetic coating in customizable colors.
Durable, wear-resistant finish cured under heat.
Enhances corrosion resistance and appearance for aluminum.
Uniform corrosion-resistant coating with excellent adhesion.
Improves hardness, wear resistance, and metallic appearance.
Precision concentric bores and external diameters delivered for optical alignment applications with consistent surface quality.
Standard and high-precision tolerances for turned diameters, lengths, and features.
| Feature | Standard Tolerance | High Precision |
|---|---|---|
| Diameter (≤ 50 mm) | ±0.05 mm | ±0.01 mm |
| Diameter (> 50 mm) | ±0.10 mm | ±0.025 mm |
| Length | ±0.10 mm | ±0.05 mm |
| Concentricity | 0.05 mm | 0.01 mm |
| Surface Roughness | Ra 3.2 µm | Ra 0.8 µm |
Follow these guidelines to improve manufacturability and reduce cost.
| Feature | Recommendation |
|---|---|
| Wall Thickness | Metal ≥ 0.8 mm; Plastic ≥ 1.5 mm |
| Internal Corners | Add radii matching standard tool sizes |
| Holes | Depth ≤ 4× diameter for drilled holes |
| Threads | Specify metric or UNC/UNF; avoid interrupted threads when possible |
| Undercuts | Keep tool access clear; define length and diameter clearly |
ISO 9001 processes and in-house inspection keep critical diameters on target.
Quotes in hours and production lead times as fast as 5 days.
100+ metals and plastics stocked for prototypes and production.
DFM feedback helps you reduce cost without sacrificing performance.
Mill and turn features in one setup for better concentricity.
From one prototype to thousands of consistent production parts.
Anodizing, plating, powder coating, and more under one roof.
Reliable packing and worldwide delivery with full documentation.
CNC turning rotates the workpiece while a cutting tool removes material to create precise cylindrical geometries, threads, grooves, and contours.
We combine multi-axis lathes, strict QC, fast lead times, and engineering support to deliver reliable prototypes and production parts.
Standard tolerances are typically ±0.05 mm, with high-precision options down to ±0.005–0.01 mm depending on geometry and material.
Aluminum, steel, stainless, brass, copper, titanium, and engineering plastics such as POM, Nylon, PEEK, and PTFE.
